Panasonic VL-SW251SX Wireless Video Home Security System

Panasonic VL-SW251SX Wireless Video Intercom System

• Wireless Operation Check visitors and respond promptly from everywhere in the home and even while you are doing something else, by wireless handset
• UP to 4* wireless monitor connectable
• Picture Recording Eight consecutive still images of visitors are automatically recorded
• 5.2 inch Colour TFT Main Monitor
• Night Vision Camera
• Panasonic VL-SW251SX Voice Changer Function

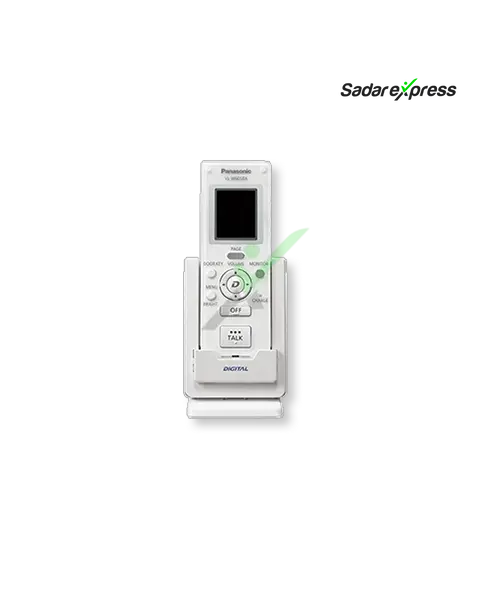

• Panasonic VL-SW251SX Wireless Handset 1.8 inch
• Monitor & Picture Recording Function

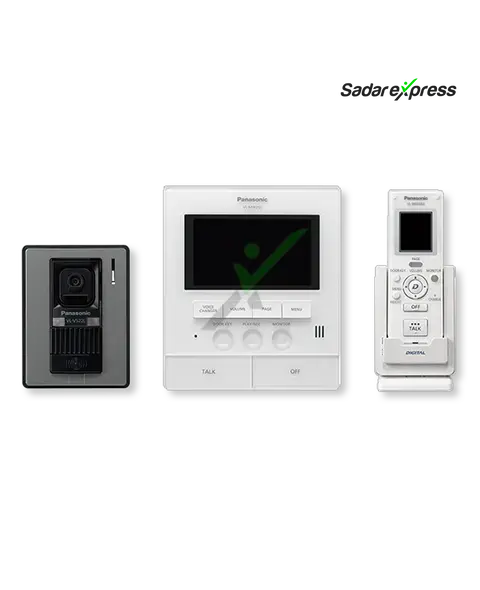

  Model composition		VL-MW251 x 1,
  Model composition		VL-W605 x 1,
  Model composition		VL-V522L x 1
  Optional Accessories	Wireless Monitor	VL-W605BX (1 included in VL-SW251)
  	Door Station	VL-V522LSX (1 included in VL-SW251)
  	Door Station	VL-V566BX
  	Lobby Station	VL-V590BX
  	Repeater	VL-FAN1BX
  Maximum Connectable Units	Wireless Monitor	UP to 4 ( 1 included in VL-SW251)
  	Door Station	UP to 2 ( 1 included in VL-SW251)
  	Monitor	UP to 1 ( 1 included in VL-SW251)
  Connectable Devices	Electric Lock Release Support	UP to 2 ( User supplied )
  	Repeater	UP to 2 ( Repeaters are sold separately )
  	PBX	Only Panasonic PBX
  Convenience	Picture Recording	Up to 50 events / 400 images
  	Picture Recording	(8 consecutive recorded images each)
  	Night Vision	Warm white LED lights, Infrared LEDs
  	Voice Changer	Yes
  	Intercom call	Between wireless monitors
  	Intercom call	* Multiple wireless monitors are required
  Monitor	Power source	100 – 240 V AC, 50/60 Hz
  	Power consumption	Standby: Approx. 0.04 A
  	Power consumption	During operation: Approx. 0.28 A
  	Dimensions (H x W x D)	Approx. 19.0 x 16.5 x 3.8 cm
  	Mass (weight)	Approx. 785 g
  	Operating environment	0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
  	Display	Approx. 12.7 cm, wide colour display
  	Talking method	Hands-free
  	Installation method	Wall mount (mounting bracket supplied)
  	Frequency	2.402 GHz – 2.481 GHz
  	External material	Flame retardant ABS resin
  Door Station	Power source	Supplied by the Main Monitor Station
  	Dimensions (H x W x D)	Approx. 13.1 x 9.9 x 3.65 cm
  	Mass (weight)	Approx. 200 g
  	Operating environment	-10 °C to +50 °C, Up to 90 % RH (Relative Humidity) non condensing
  	Viewing angle	Horizontally: Approx. 87°
  	Viewing angle	Vertically: Approx. 66°
  	Installation method	Wall mount (Wall mount base supplied)
  	Minimum illuminance required	1 lx
  	Minimum illuminance required	(within approx. 50 cm from the camera lens)
  	Lighting method	Warm white LED lights, Infrared LEDs
  	IP rating (INGRESS PROTECTION)	IPX3-rated water resistant
  	External material	Flame retardant ABS resin
  Wireless Monitor	Power source	Ni-MH battery (3.6 V DC / 650 mAh)
  	Dimensions (H x W x D)	Approx. 15.7 x 5.2 x 3.5 cm
  	Mass (weight)	Approx. 175 g (including the battery)
  	Operating environment	0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
  	Display	Approx.4.572 cm, colour display
  	Frequency	2.402 GHz – 2.481 GHz
  	External material	ABS resin
  Charger	Power source	AC adaptor: PQLV219BX (100-240 V AC, 50/60 Hz)
  	Dimensions (H x W x D)	Approx. 11.5 x 7.6 x 9.0 cm
  	Dimensions (H x W x D)	Approx. 10.5 x 7.6 x 4.8 cm (using without the stand)
  	Mass (weight)	Approx. 115 g (including the stand)
  	Operating environment	0 °C to +40 °C, Up to 90 % RH (Relative Humidity) non condensing
  	External material	ABS resin
