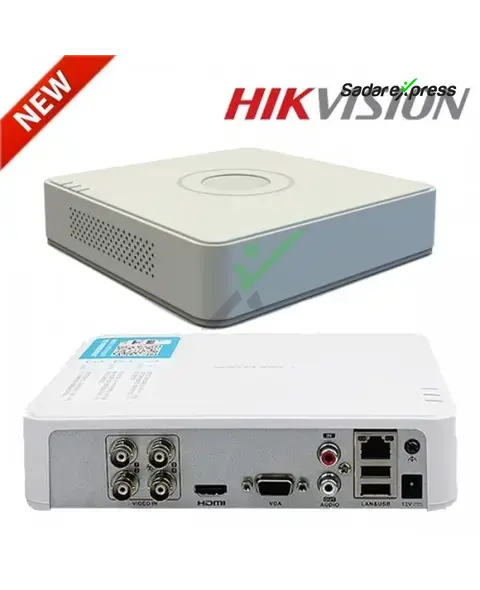

HikVision DS-7104HQHi-K1 4 channel DVR Plastic Body 5MP Record 5mp Supported

Recording

• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding ResolutionWhen 1080p Lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame RateMain stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps ,(P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
• Video Bit Rate32 Kbps to 6 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps

Video And Audio

• IP Video Input2-ch (up to 6-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback4-ch
• HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
• VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

• Remote Connections32
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceReal panel: 2 × USB 2.0

General

• Power Supply12 VDC
• Consumption (Without HDD)≤ 8 W
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90>#/span###
• Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• Weights (Without HDD)≤ 1 kg (2.2 lb)
